Type 1Preclinical development
LU-1001 / LU-1002
Investigational candidates targeting coronary arteriolar mechanisms to support CMD endotyping and endotype-specific therapy.
- Research focus
- CMD endotyping
- Development focus
- Endotype-specific therapy
Pioneering the fight against microvascular diseases.
Lucier Pharma develops drug candidates targeting the unique mechanisms of coronary microvessels to treat endotype-specific coronary microvascular dysfunction (CMD).
Explore our scienceScience
Small vessels.
A significant unmet need.
Microvascular dysfunction can affect organs throughout the body, including the heart, eyes, and central nervous system. Lucier’s focus is coronary microvascular dysfunction, where effective, mechanism-directed therapies remain a significant unmet need.
Explore the researchWhat is a microvessel?
The microcirculation is a connected network of small arteries, arterioles, capillaries, and venules. These segments are distinguished by their size and function.
Our team focuses on coronary arterioles with an inner diameter of approximately 40–100 micrometers (µm) under maximal dilation. Definitions have evolved as research has revealed functional differences between arterioles and larger vessels around 200 µm in diameter.1
What makes arterioles unique?
Microvascular autoregulation helps maintain adequate tissue perfusion over a range of arterial pressures. As pressure rises, arterioles constrict (narrow), limiting the pressure and flow transmitted downstream. As pressure falls, they dilate (widen), helping preserve blood flow. Within the autoregulatory range, this keeps tissue-level flow relatively stable when metabolic demand is unchanged.23 The interaction between small and large vessels also matters when CMD coexists with obstructive coronary artery disease.4
In 1988, Professor Lih Kuo and colleagues demonstrated pressure-dependent myogenic responses in isolated porcine coronary arterioles, establishing a foundation for understanding this intrinsic regulation of coronary blood flow.5
Human studies after coronary intervention help explain how blood flow and microvascular resistance adapt when upstream coronary disease is treated, and how coexisting CMD can affect symptoms.234 In a 2026 study, resting blood flow remained stable because microvascular resistance increased as epicardial resistance fell, providing direct evidence of coronary autoregulation in humans.6
How does CMD relate to other diagnoses?
Coronary microvascular dysfunction (CMD) affects the regulation of blood flow in the heart’s small vessels. It can contribute to angina, ischemia, or myocardial infarction, including when the large coronary arteries are not obstructed.7
ANOCA, INOCA, and MINOCA describe clinical presentations; CMD can be an underlying mechanism, but these terms are not interchangeable with CMD and may have other causes.7
Four dedicated U.S. ICD-10-CM codes recognize CMD: I20.81 (angina with CMD), I21.B (myocardial infarction with CMD), I24.81 (acute CMD), and I25.85 (chronic CMD).8
How common is CMD?
A systematic review and meta-analysis of 56 studies involving 14,427 patients estimated a pooled CMD prevalence of 41% (95% confidence interval, 36–47%) among patients with no obstructive coronary artery disease.9
That estimate applies to the populations studied, rather than the general population. CMD can also coexist with disease in larger coronary arteries, so a focus on nonobstructive disease alone does not capture its full clinical reach. Greater access to coronary physiology assessment can help reveal these distinct mechanisms.4
History of CMD
From clinical observations
to microvascular mechanisms.
01 / 1967–2023Evolving clinical
recognition4 milestones
From the first clinical observations to shared terminology and dedicated diagnostic codes.
An early clinical puzzle
Signs of coronary heart disease despite apparently normal angiograms.
Revisiting cardiac syndrome X
Dr. Richard O. Cannon III reviews the continuing challenge of chest pain with normal coronary angiograms, historically described as cardiac syndrome X. The review examines microvascular angina and unresolved questions about its mechanisms, diagnosis, and treatment.
Four clinical settings for CMD
Crea, Camici, and Bairey Merz review four clinical settings: CMD without myocardial disease or obstructive coronary artery disease; CMD with myocardial disease; CMD with obstructive coronary artery disease; and iatrogenic CMD. These clinical categories provide context for the diverse mechanisms underlying CMD.
Dedicated diagnostic codes
Four U.S. ICD-10-CM codes recognize CMD: I20.81, I21.B, I24.81 and I25.85.
02 / 2020–2026The treatment
challenge5 studies
A persistent treatment-evidence gap. The trials below did not establish benefit on their primary outcomes; their populations, treatments, and endpoints differ. These results reinforce the need to understand CMD mechanisms and develop therapies directed at them.
MARINAranolazine
This pilot trial found no significant improvement in angina frequency or invasive microvascular function versus placebo at three months.
NCT02147067Trial publication (opens in a new tab)EDIT-CMDdiltiazem
Diltiazem did not substantially improve the primary coronary-function endpoint, symptoms, or quality of life over six weeks, although epicardial spasm was reduced.
NCT04777045Trial publication (opens in a new tab)Zibotentan in microvascular angina
The primary exercise-duration endpoint did not improve versus placebo. Adverse events were more common with zibotentan.
NCT04097314Trial publication (opens in a new tab)WARRIORintensive medical therapy
No significant difference in the primary cardiovascular-event endpoint was found in women with suspected INOCA. Enrollment shortfalls and treatment crossover limit interpretation.
NCT03417388ACC trial report (opens in a new tab)ViVAvericiguat
Vericiguat did not demonstrate improved peripheral vasodilator function or anginal symptoms in patients with coronary vasospasm during this crossover trial.
NCT06415227Trial publication (opens in a new tab)
03 / 1988–2026A microvascular
perspective6 studies
Lucier’s work builds on direct study of coronary arterioles. Understanding their distinct behavior helps us challenge assumptions drawn from larger vessels and investigate mechanisms that may enable endotype-specific medicines.
Myogenic activity in coronary arterioles
Dr. Lih Kuo and colleagues demonstrate pressure-dependent myogenic activity in isolated porcine coronary arterioles, supporting a role in blood-flow autoregulation.
Different vessels, different responses
Small coronary arterioles show the greatest sensitivity to adenosine. Larger microvascular segments respond at higher concentrations, demonstrating distinct behavior along the vessel network.
Opening the microvascular black box
Pries and Reglin identify a gap between clinical observations and experimental understanding of coronary microvascular disease. Their review calls for mechanistic research to support patient stratification and effective therapies.
A research agenda for the next decade
An ACC-led working group outlines the knowledge gaps in INOCA and the research needed to develop evidence-based therapies. It calls for a better understanding of underlying mechanisms and a coordinated approach to future studies.
Paradoxical constriction in a disease model
In a mouse model of pressure-overload hypertrophy, acetylcholine causes coronary arteriolar constriction despite an intact endothelium. The findings implicate elevated Rho kinase activity in microvascular dysfunction.
Autoregulation measured in humans
Direct coronary physiology measurements show that changes in microvascular resistance help maintain stable resting blood flow as resistance in the large coronary arteries changes, providing evidence of autoregulation in humans.
Evolving clinical recognition
From the first clinical observations to shared terminology and dedicated diagnostic codes.
An early clinical puzzle
Signs of coronary heart disease despite apparently normal angiograms.
Revisiting cardiac syndrome X
Dr. Richard O. Cannon III reviews the continuing challenge of chest pain with normal coronary angiograms, historically described as cardiac syndrome X. The review examines microvascular angina and unresolved questions about its mechanisms, diagnosis, and treatment.
Four clinical settings for CMD
Crea, Camici, and Bairey Merz review four clinical settings: CMD without myocardial disease or obstructive coronary artery disease; CMD with myocardial disease; CMD with obstructive coronary artery disease; and iatrogenic CMD. These clinical categories provide context for the diverse mechanisms underlying CMD.
Dedicated diagnostic codes
Four U.S. ICD-10-CM codes recognize CMD: I20.81, I21.B, I24.81 and I25.85.
The treatment challenge
A persistent treatment-evidence gap. The trials below did not establish benefit on their primary outcomes; their populations, treatments, and endpoints differ. These results reinforce the need to understand CMD mechanisms and develop therapies directed at them.
MARINAranolazine
This pilot trial found no significant improvement in angina frequency or invasive microvascular function versus placebo at three months.
NCT02147067Trial publication (opens in a new tab)
EDIT-CMDdiltiazem
Diltiazem did not substantially improve the primary coronary-function endpoint, symptoms, or quality of life over six weeks, although epicardial spasm was reduced.
NCT04777045Trial publication (opens in a new tab)
Zibotentan in microvascular angina
The primary exercise-duration endpoint did not improve versus placebo. Adverse events were more common with zibotentan.
NCT04097314Trial publication (opens in a new tab)
WARRIORintensive medical therapy
No significant difference in the primary cardiovascular-event endpoint was found in women with suspected INOCA. Enrollment shortfalls and treatment crossover limit interpretation.
NCT03417388ACC trial report (opens in a new tab)
ViVAvericiguat
Vericiguat did not demonstrate improved peripheral vasodilator function or anginal symptoms in patients with coronary vasospasm during this crossover trial.
NCT06415227Trial publication (opens in a new tab)
A microvascular perspective
Lucier’s work builds on direct study of coronary arterioles. Understanding their distinct behavior helps us challenge assumptions drawn from larger vessels and investigate mechanisms that may enable endotype-specific medicines.
Myogenic activity in coronary arterioles
Dr. Lih Kuo and colleagues demonstrate pressure-dependent myogenic activity in isolated porcine coronary arterioles, supporting a role in blood-flow autoregulation.
Different vessels, different responses
Small coronary arterioles show the greatest sensitivity to adenosine. Larger microvascular segments respond at higher concentrations, demonstrating distinct behavior along the vessel network.
Opening the microvascular black box
Pries and Reglin identify a gap between clinical observations and experimental understanding of coronary microvascular disease. Their review calls for mechanistic research to support patient stratification and effective therapies.
A research agenda for the next decade
An ACC-led working group outlines the knowledge gaps in INOCA and the research needed to develop evidence-based therapies. It calls for a better understanding of underlying mechanisms and a coordinated approach to future studies.
Paradoxical constriction in a disease model
In a mouse model of pressure-overload hypertrophy, acetylcholine causes coronary arteriolar constriction despite an intact endothelium. The findings implicate elevated Rho kinase activity in microvascular dysfunction.
Autoregulation measured in humans
Direct coronary physiology measurements show that changes in microvascular resistance help maintain stable resting blood flow as resistance in the large coronary arteries changes, providing evidence of autoregulation in humans.
Key experiments advancing our knowledge of microvessels

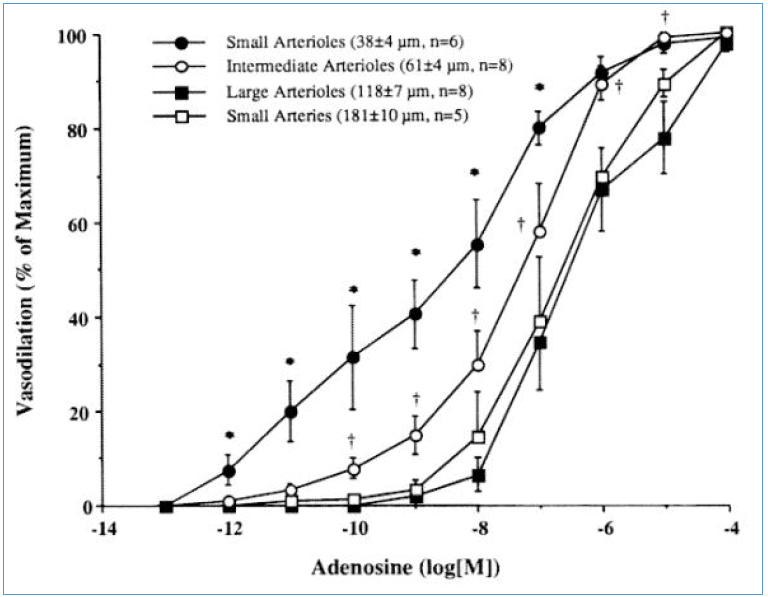

Figure 1
Adenosine reveals differences between microvessels
Adenosine dilates coronary microvessels and is commonly used during coronary physiology assessment to measure coronary flow reserve and microvascular resistance. An impaired flow response can help identify CMD.7
Dr. Lih Kuo and colleagues showed that small coronary arterioles were more sensitive to adenosine than larger microvascular segments. The curves shift to higher concentrations as vessel size increases, demonstrating distinct responses along the coronary microcirculation.1

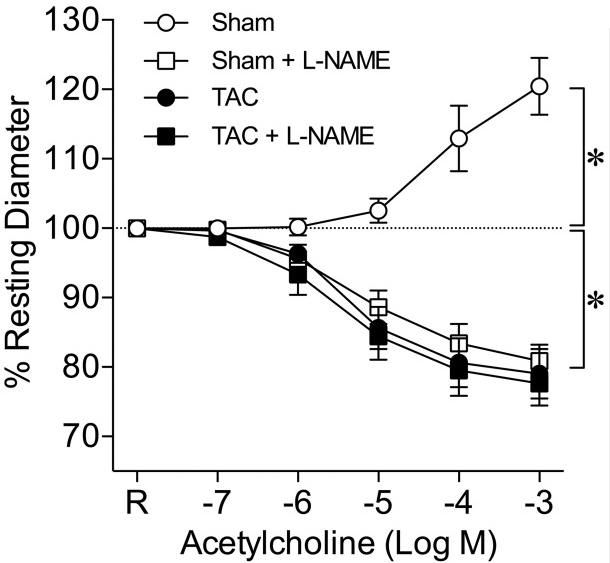

Figure 2
Acetylcholine exposes paradoxical vasoconstriction
Acetylcholine (ACh) can cause paradoxical vasoconstriction in diseased coronary arterioles even when the endothelium remains intact.10 In clinical practice, acetylcholine provocation testing helps assess epicardial coronary spasm and microvascular spasm.7
The team observed ACh-induced constriction in coronary arterioles isolated from pressure-overload mice. Elevated Rho kinase activity was implicated in the abnormal response, and inhibiting Rho kinase abolished the ACh-induced constriction. These experimental findings support further investigation of this pathway in CMD.10
Figure 3
A pressure-overload model connects vessel and heart function
The paradoxical response shown in Figure 2 was observed in coronary arterioles isolated from a pressure-overload mouse model. Narrowing the aorta by transverse aortic constriction (TAC) increased the heart’s workload and produced cardiac hypertrophy.10
The upper panels compare a sham-control heart with an enlarged TAC heart. The lower panels show corresponding ultrasound images of the aorta. This model linked altered arteriolar responses with impaired coronary flow regulation and cardiac function; it does not represent every form of human CMD.10
Pipeline
Two programs.
A shared purpose.
Our programs investigate the distinct mechanisms of coronary microvascular dysfunction to support CMD endotyping and endotype-specific drug development.
Type 2Potential late-phase development
LU-3001 / LU-3002
An undisclosed asset being evaluated for a specific CMD subtype.
- Research focus
- CMD endotyping
- Development focus
- Endotype-specific therapy
All programs are investigational. Safety and efficacy for CMD have not been established, and no Lucier candidate is approved for patient use.
Team
Research roots.
Development experience.
Lucier’s programs draw on coronary arteriolar research originating at Texas A&M University. Our advisors bring experience in vascular biology, translational research, preclinical development, and biotechnology strategy.
Intellectual property PCT/US2024/029067
